Monitoring VMWare vSphere with Grafana and Telegraf

13. Juli 2020 by sebastian Kommentar verfassen

  1. Collector Configuration

You need the latest Telegraf version which includes the vSphere Plugin!

On Ubuntu or Debian you can get it with:

wget https://dl.influxdata.com/telegraf/releases/telegraf_1.14.5-1_amd64.deb
sudo dpkg -i telegraf_1.14.5-1_amd64.deb

Now add the following lines to your ‚/etc/telegraf/telegraf.conf‘:

### VMWARE ####

## Realtime
instance [[inputs.vsphere]]
interval = "60s"
vcenters = [ "https://VCENTERSERVER/sdk" ]
username = "USERNAME@vsphere.local"
password = "PASSWORD"
insecure_skip_verify = true
force_discover_on_init = true
# Exclude all historical metrics
datastore_metric_exclude = ["*"]
cluster_metric_exclude = ["*"]
datacenter_metric_exclude = ["*"]
collect_concurrency = 5
discover_concurrency = 5

# Historical
instance [[inputs.vsphere]]
interval = "300s"
vcenters = [ "https://VCENTERSERVER/sdk" ]
username = "USERNAME@vsphere.local"
password = "PASSWORD"
insecure_skip_verify = true
force_discover_on_init = true
host_metric_exclude = ["*"]
# Exclude realtime metrics
vm_metric_exclude = ["*"]
# Exclude realtime metrics
max_query_metrics = 256
collect_concurrency = 3

2. Download Grafana Dashboard

You can download the dashboard from: https://grafana.com/grafana/dashboards/8159

After downloading import it into your Grafana installation.

3. Piechart

This Dashboard uses the Piechart plugin for Grafana. You can install it with:

grafana-cli plugins install grafana-piechart-panel

4. Screenshots

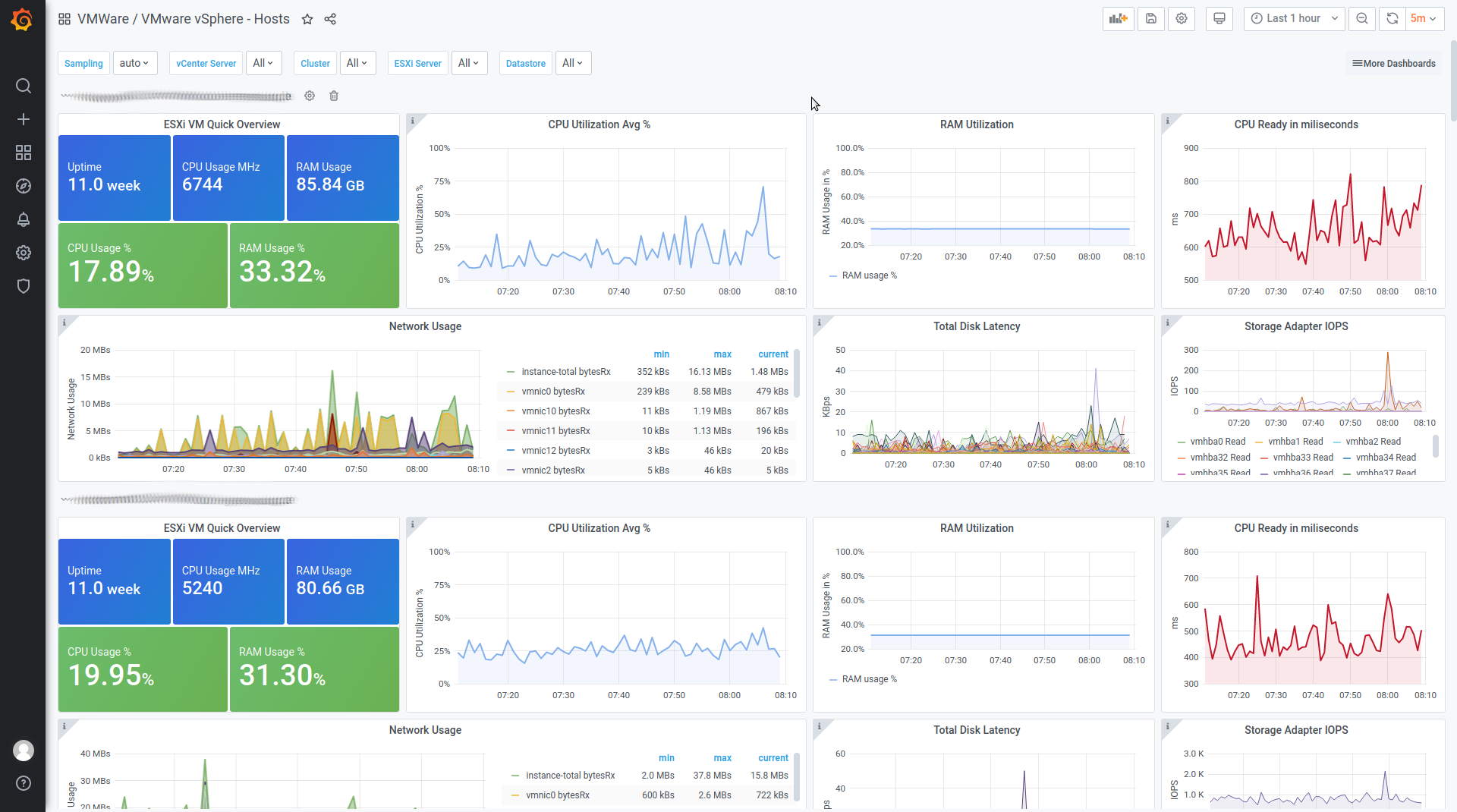

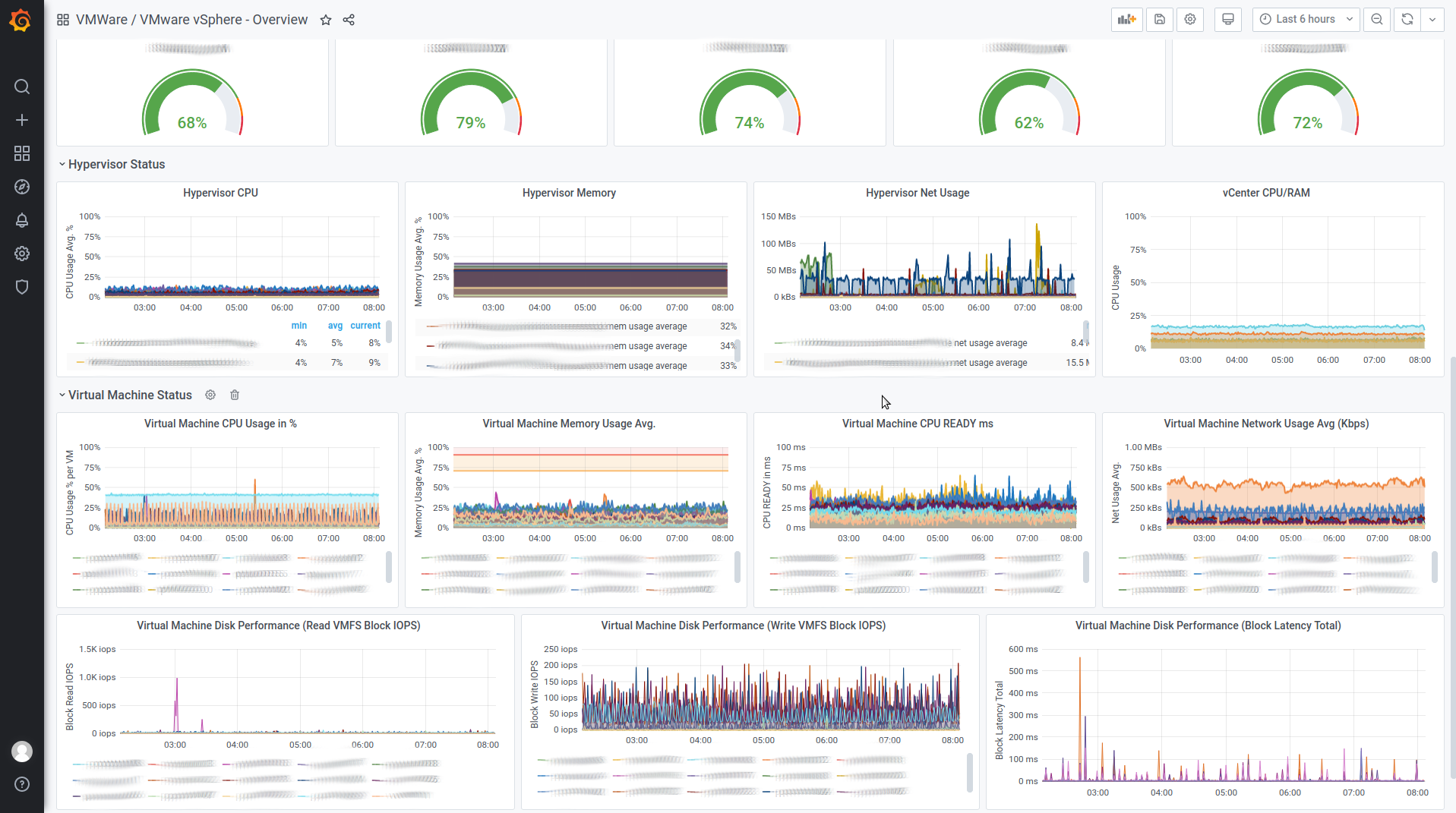

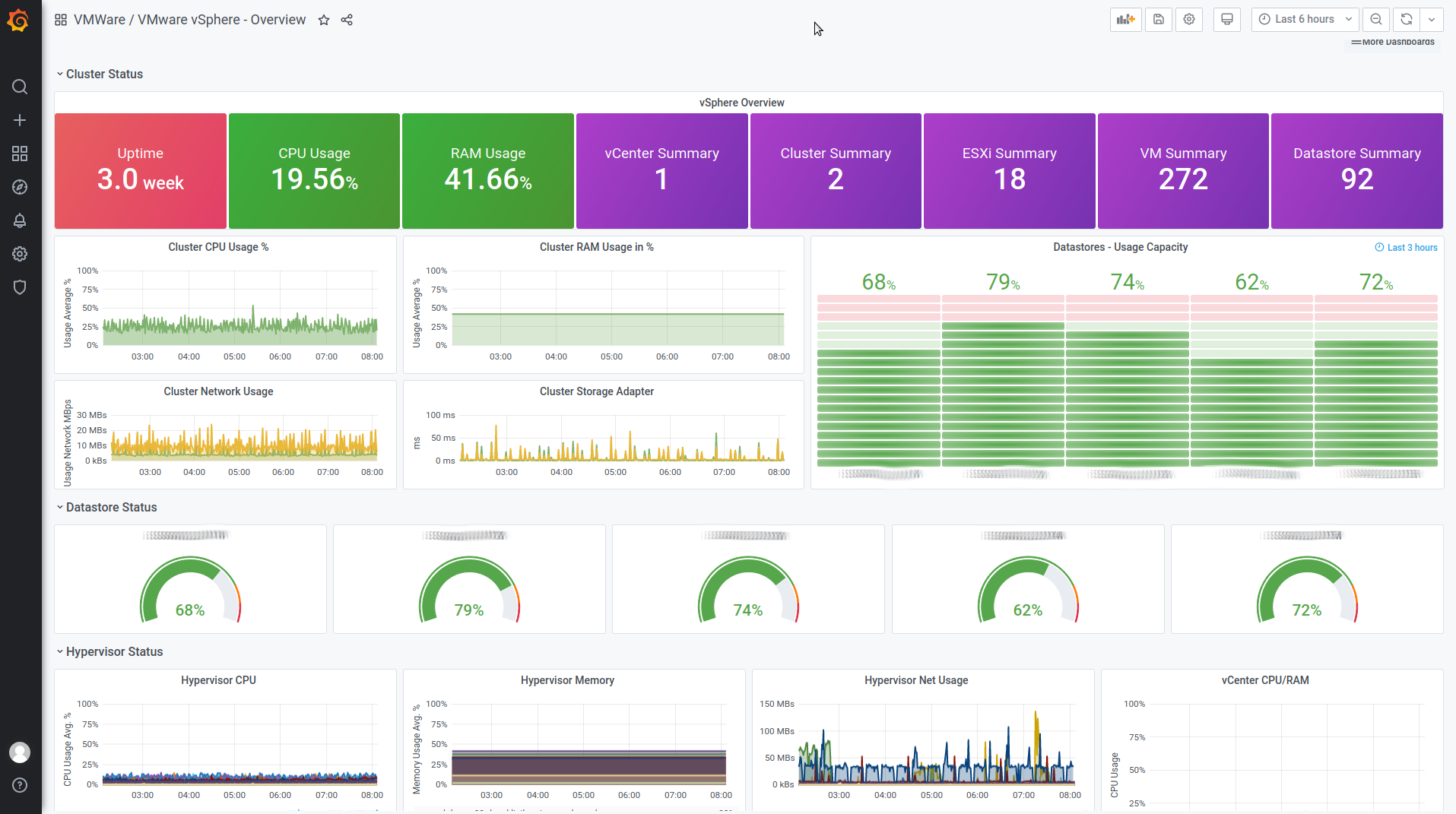

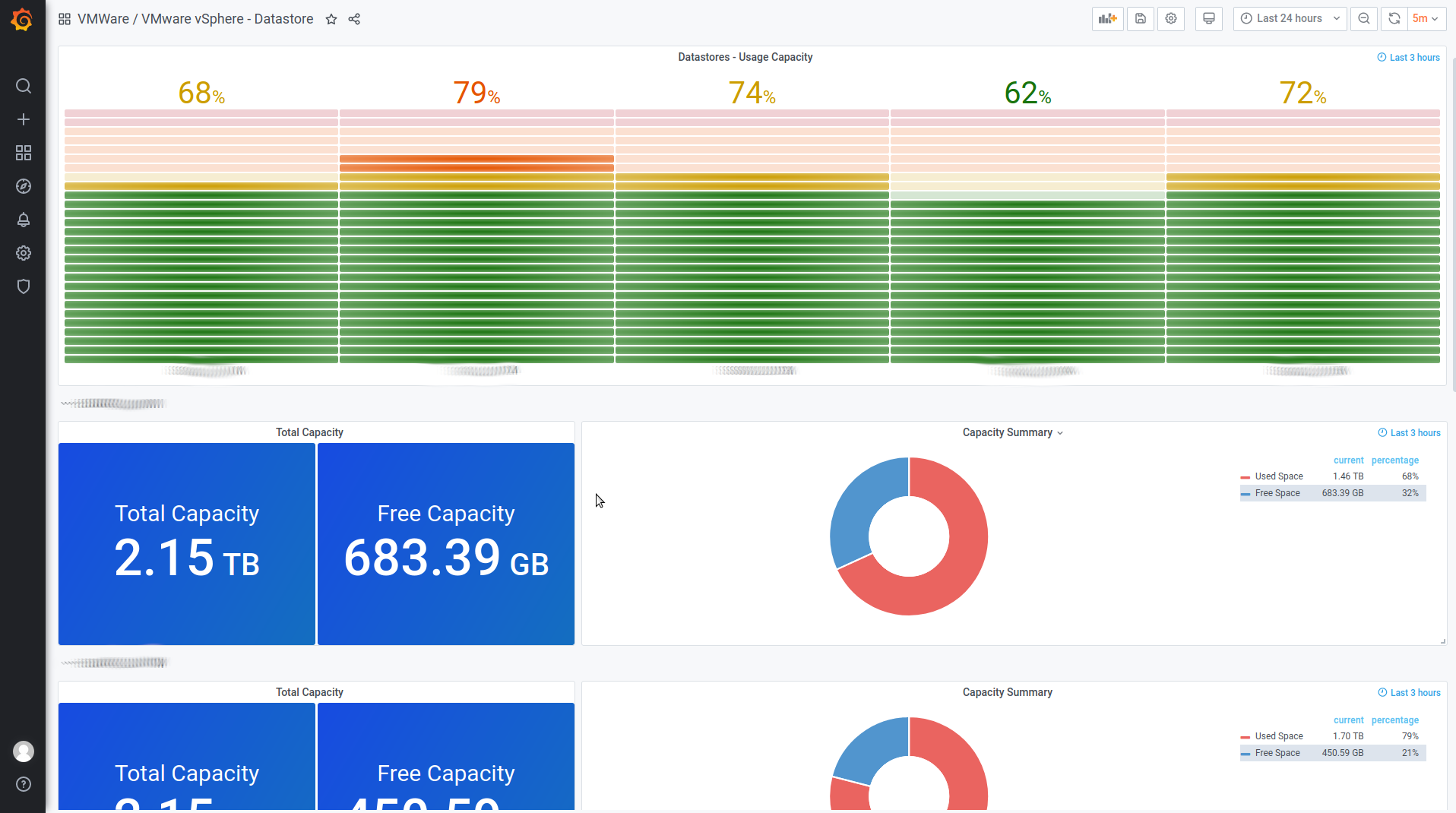

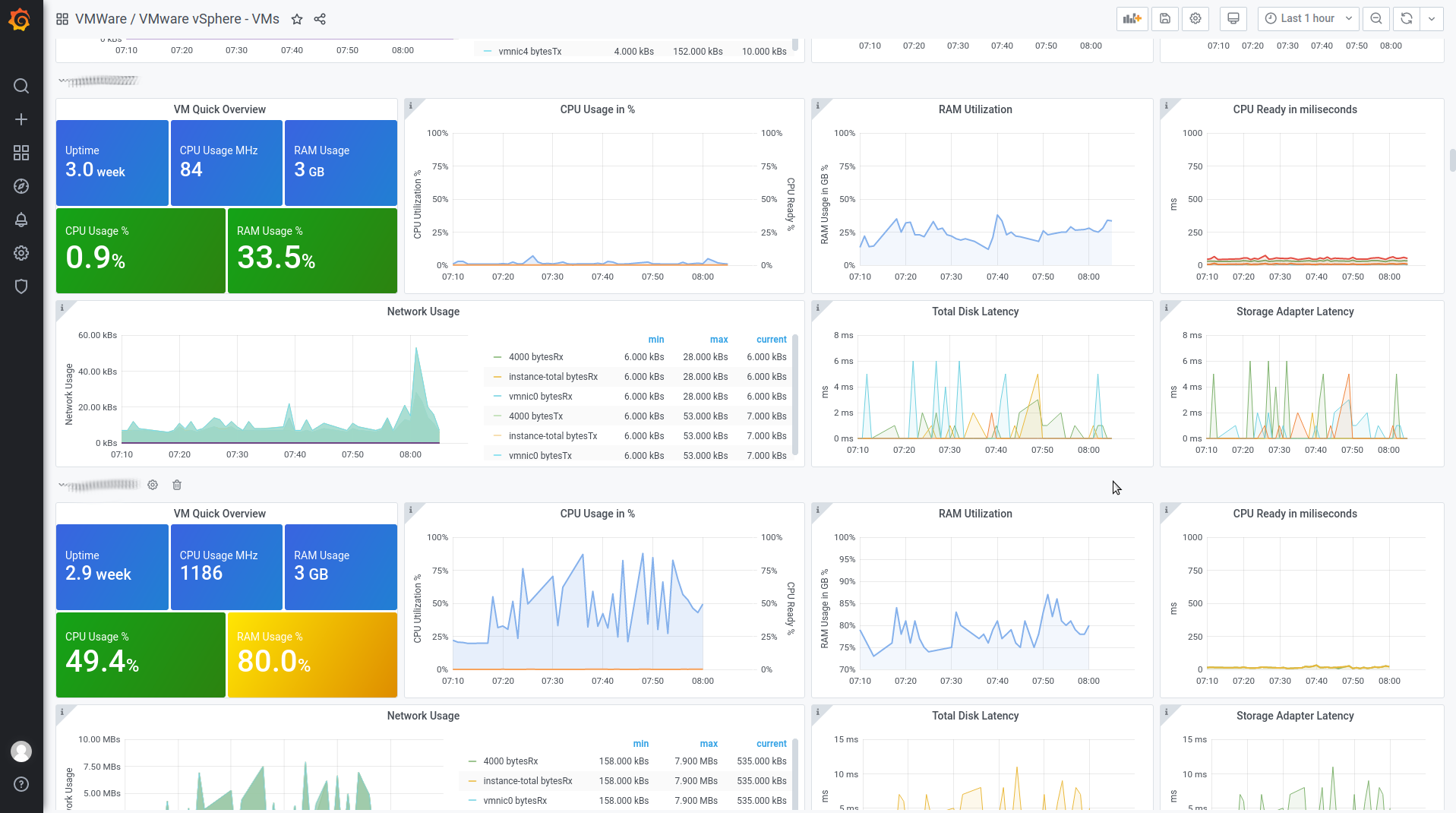

If all works you should see something like this:

[ngg src=“galleries“ ids=“27″ display=“pro_horizontal_filmstrip“]

Kategorie: Systemadministration, Virtualization Stichworte: grafana, telegraf, vmware, vsphere
